Manufactured on a state-of-the-art Myriad tufting machine, the Urban Structure collection is a truly artistic flooring concept that uses 100% polypropylene stain-free yarn in a technically superior finish.
Constructed with 1/10th gauge multi-level loop, Urban Structure is a product that meets the demands of a commercial environment yet works within demanding cost restraints.
The selection of contemporary colours and accents melt together to create a sympathetic relation in which the colours are perfectly balanced.

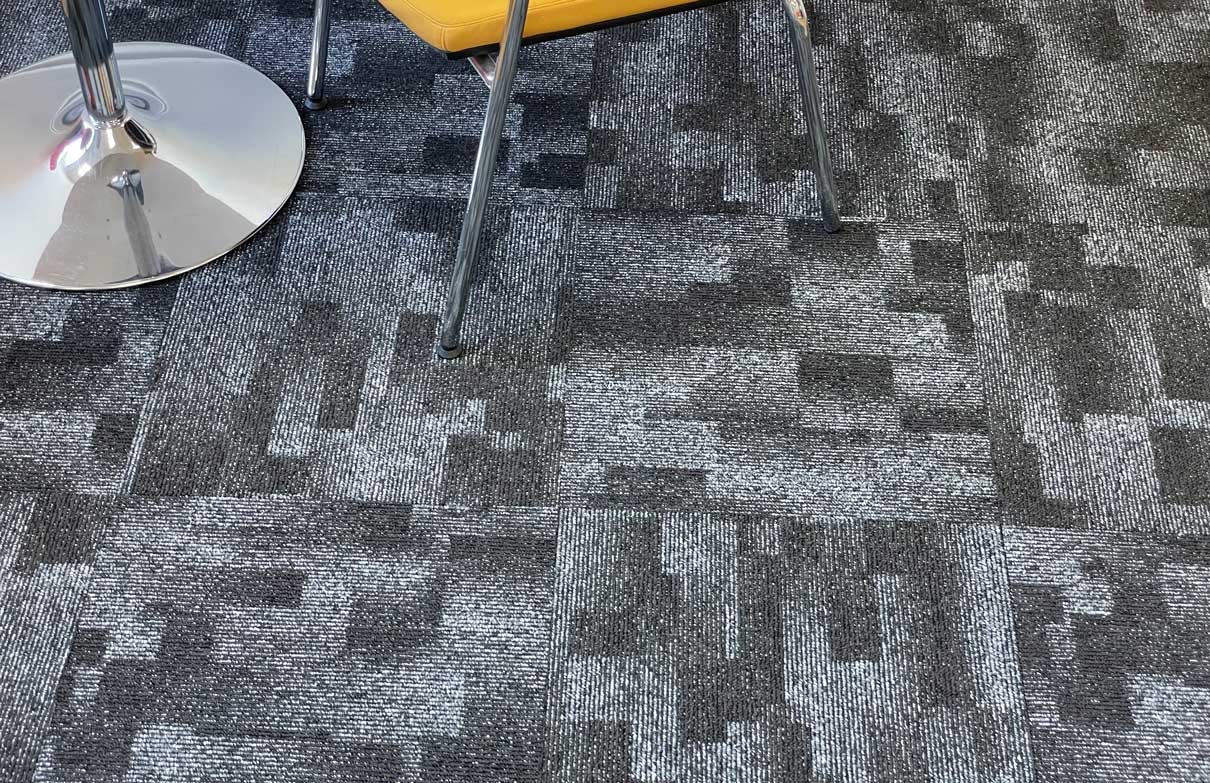

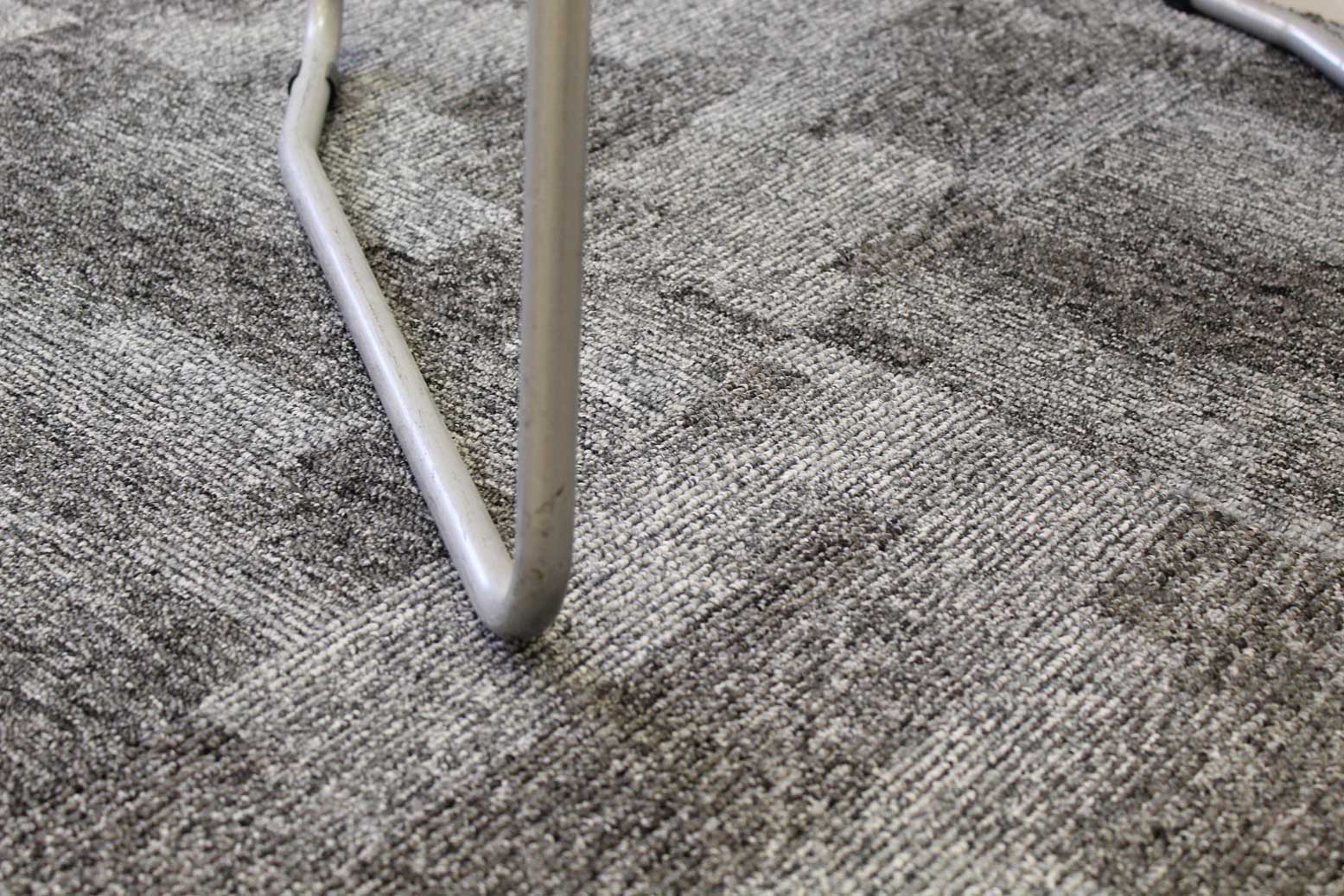

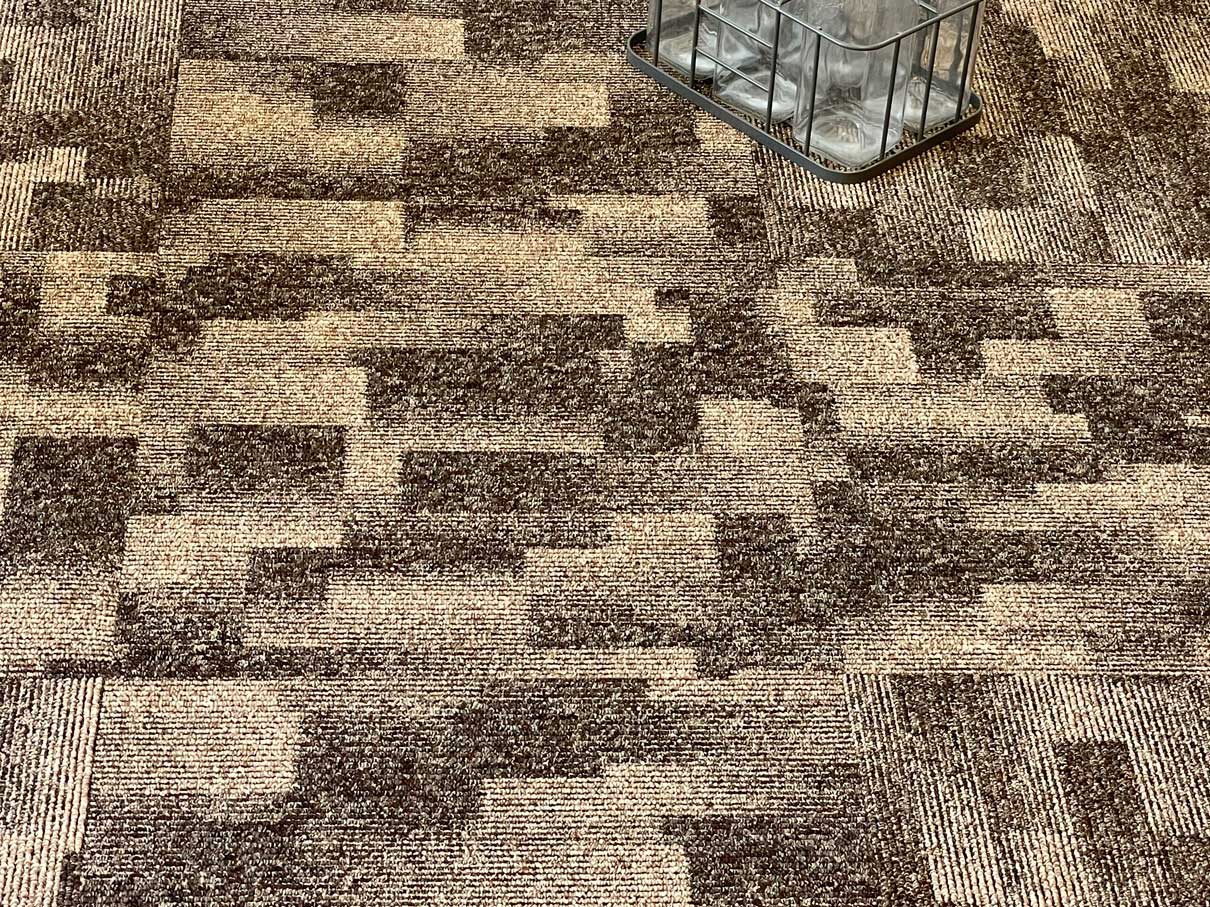

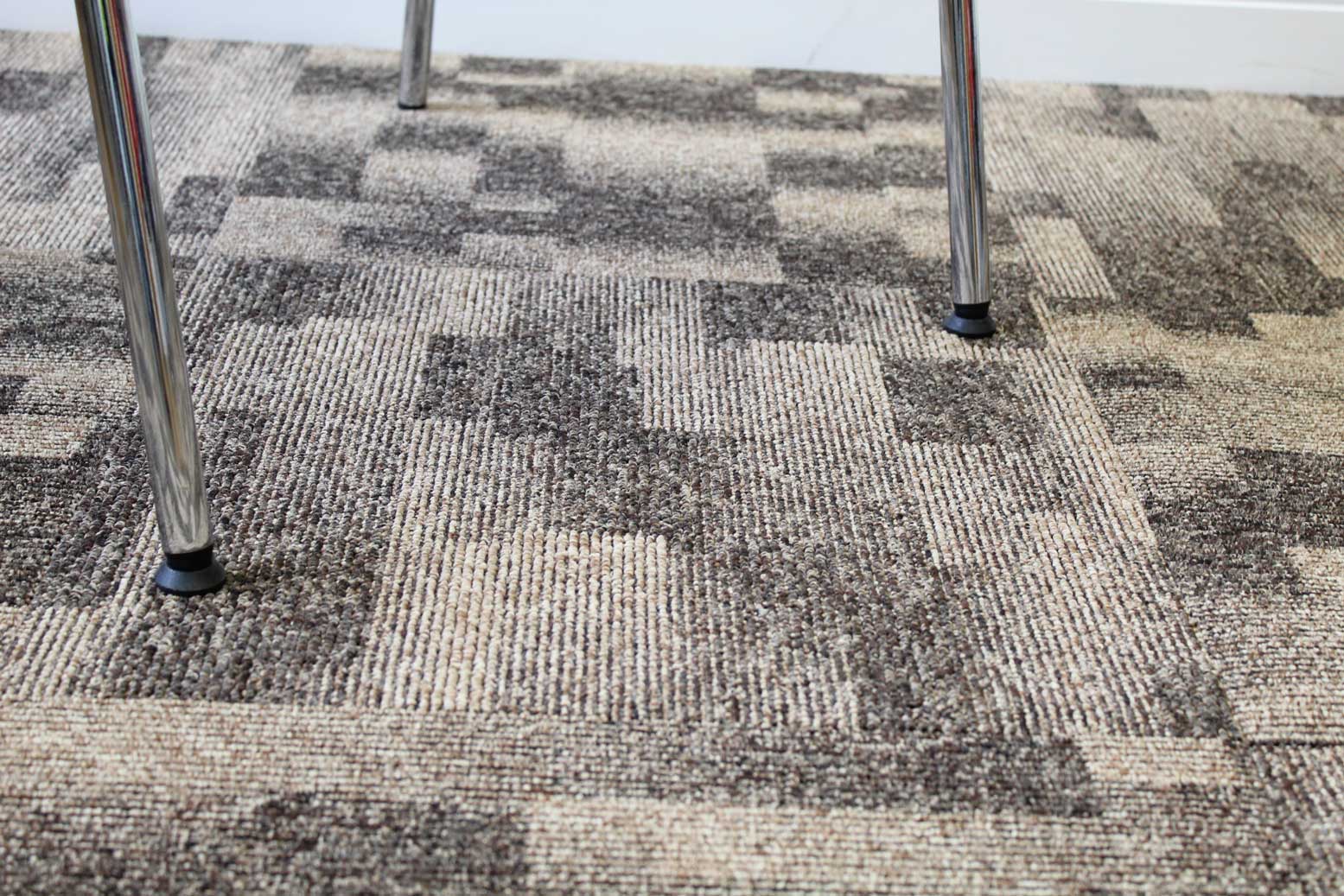

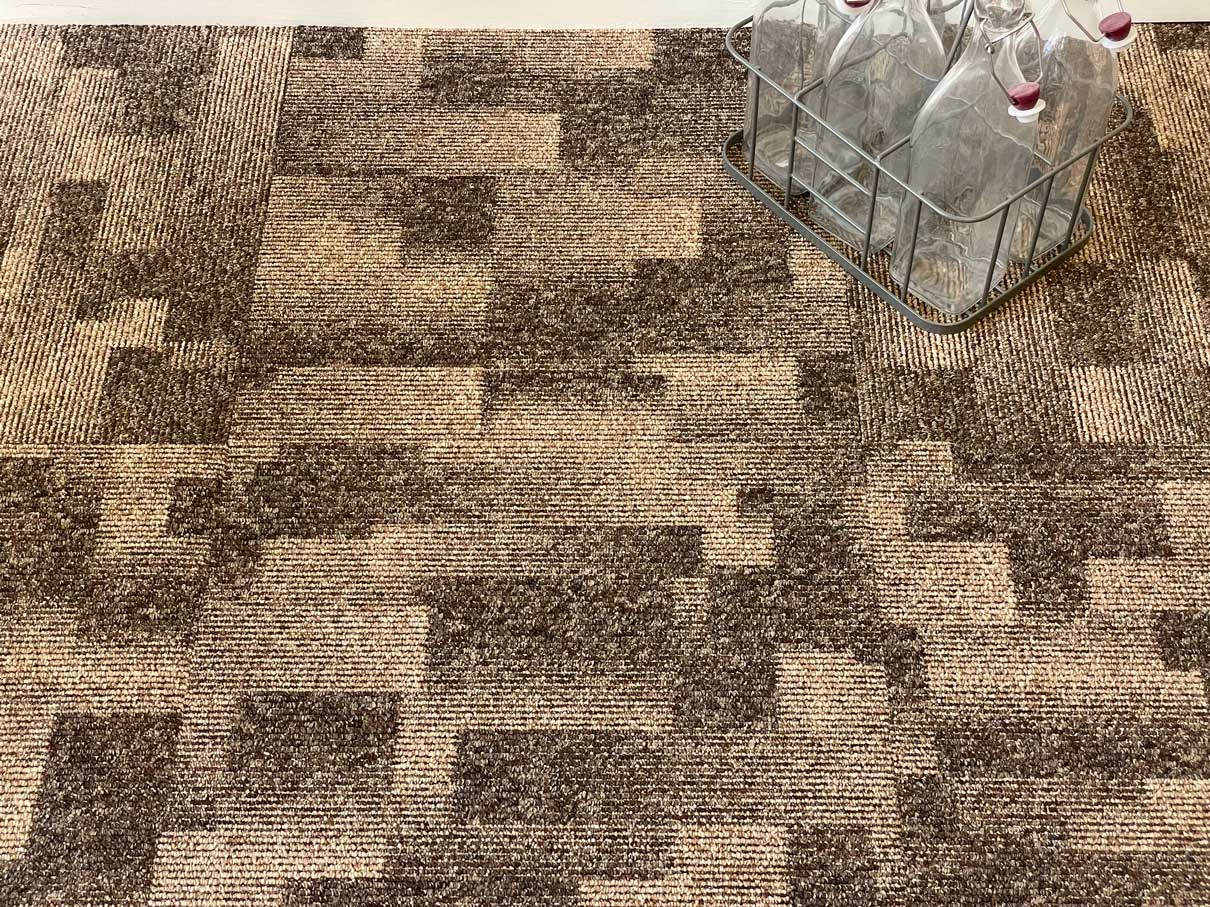

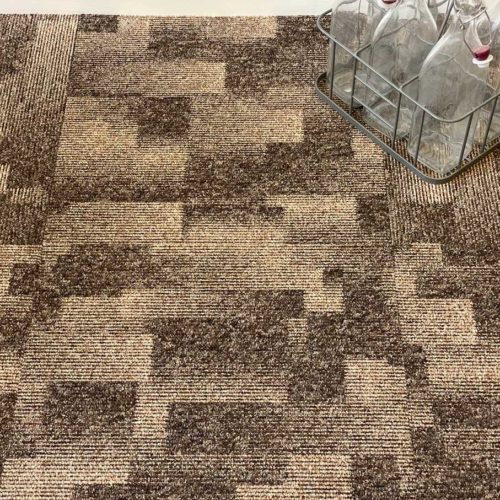

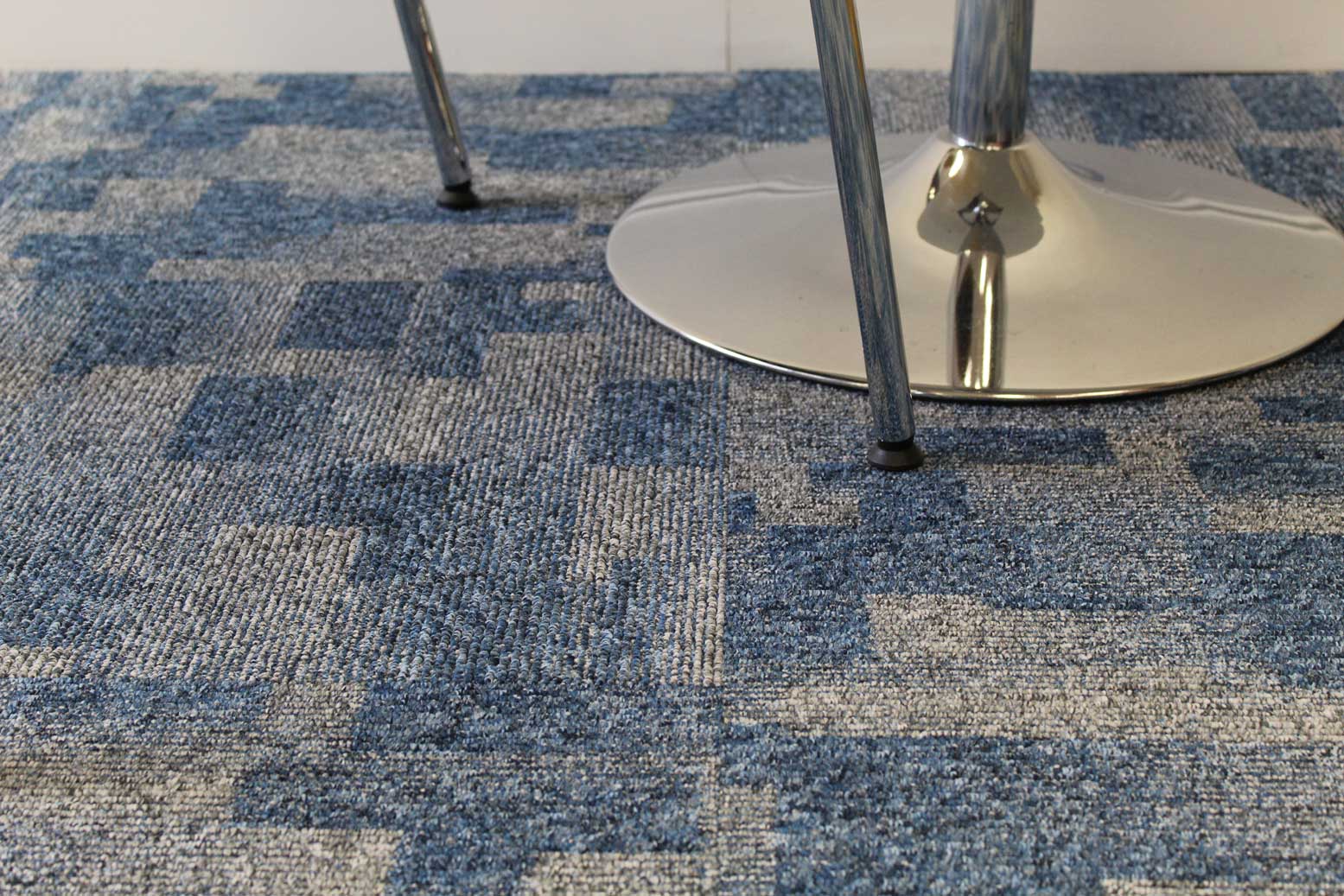

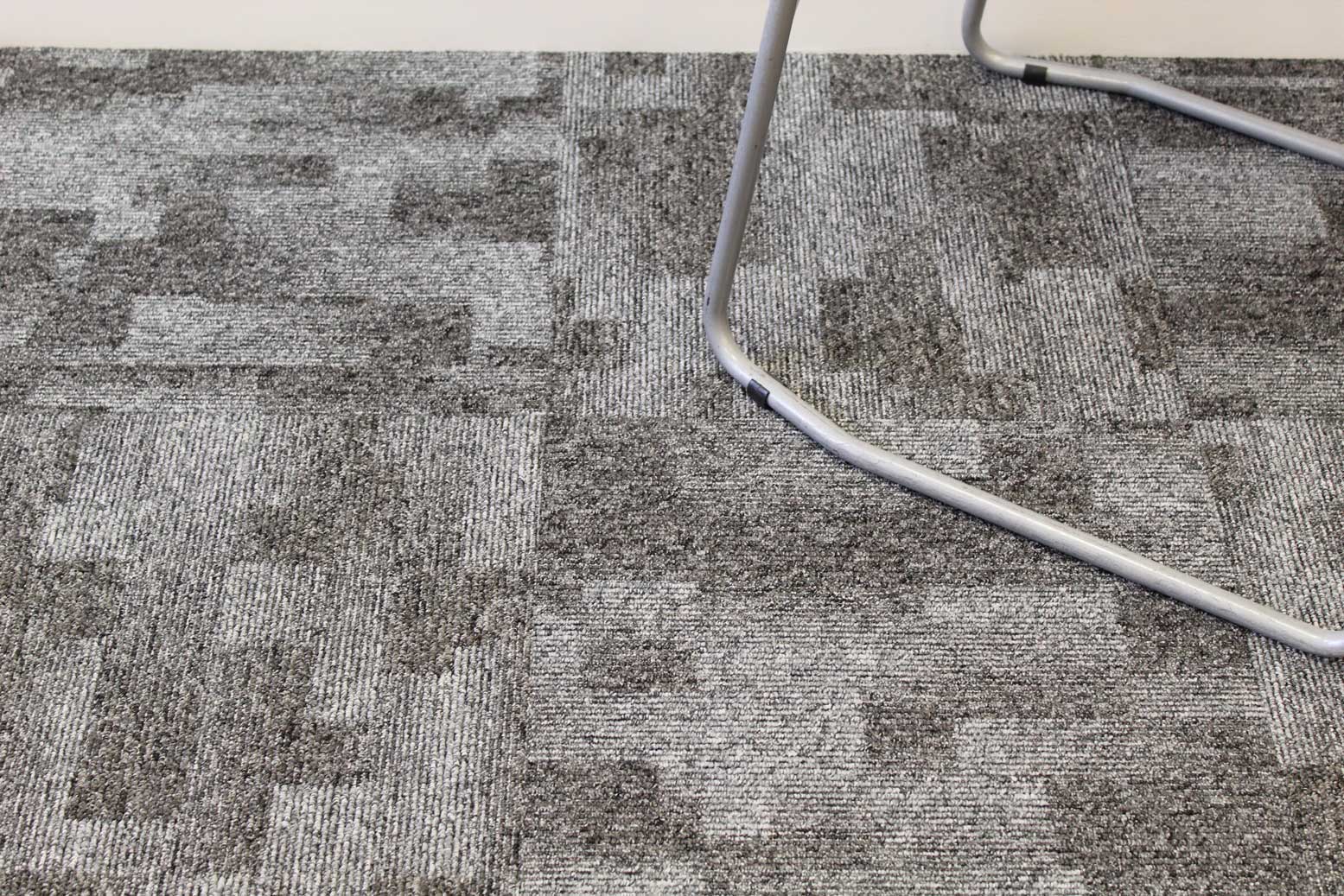

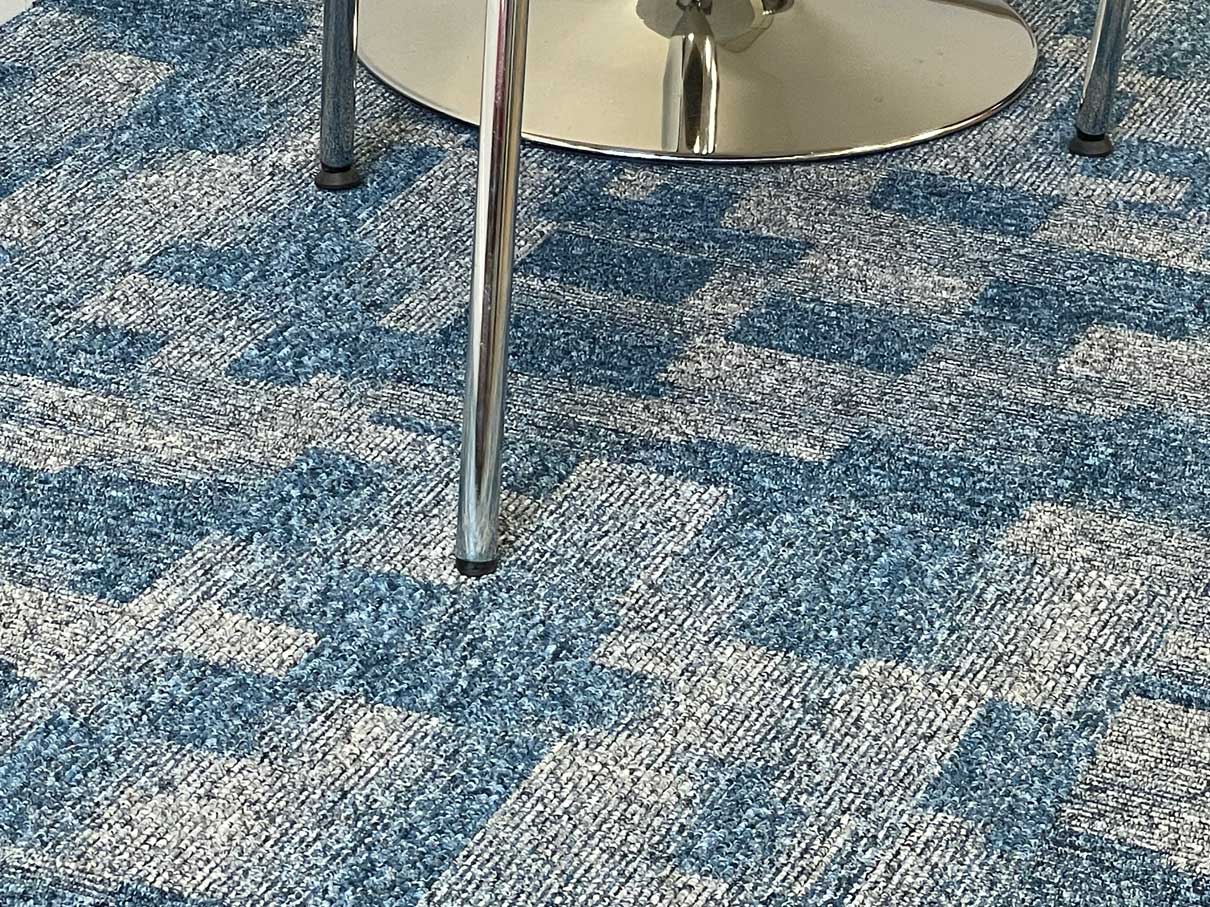

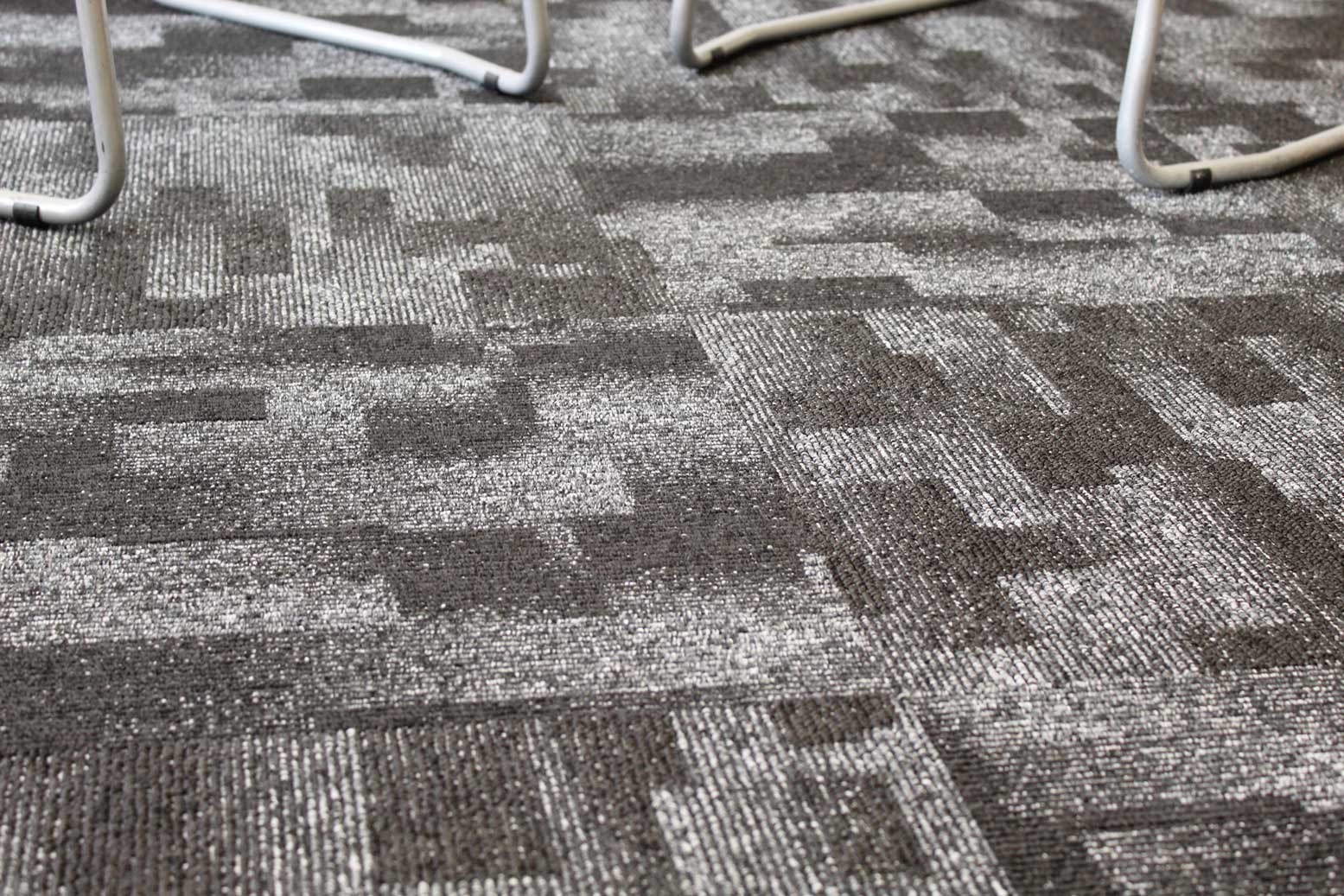

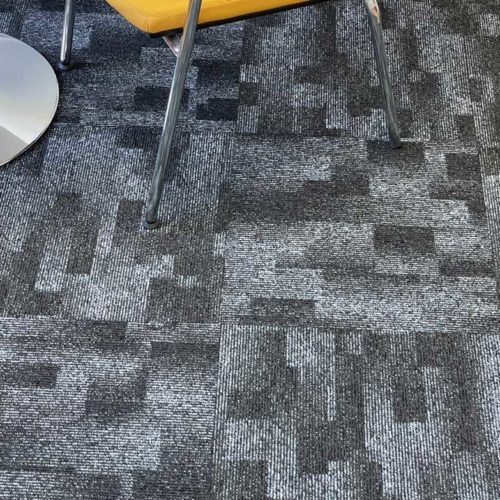

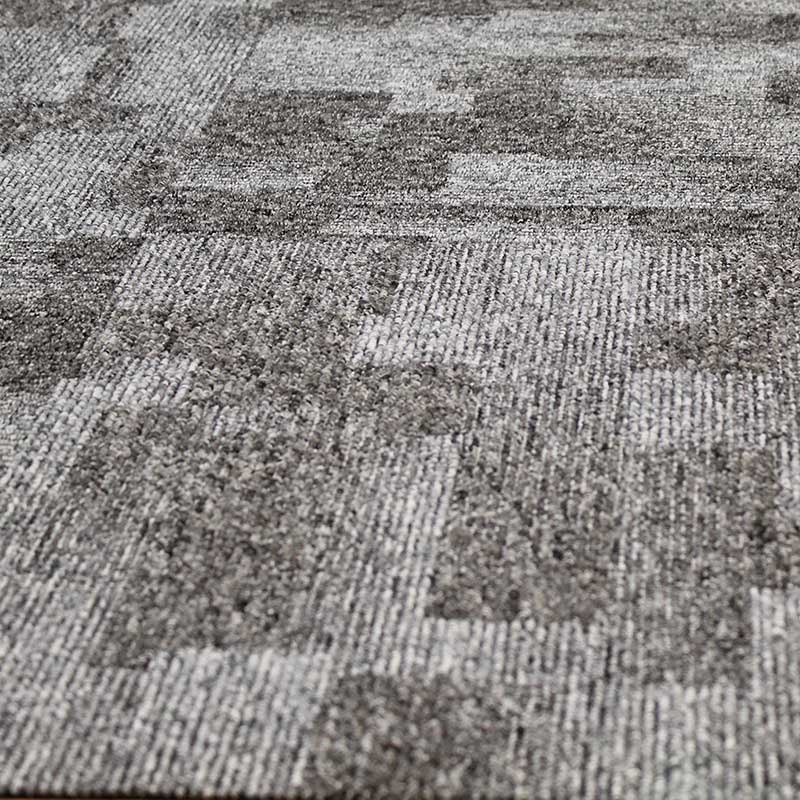

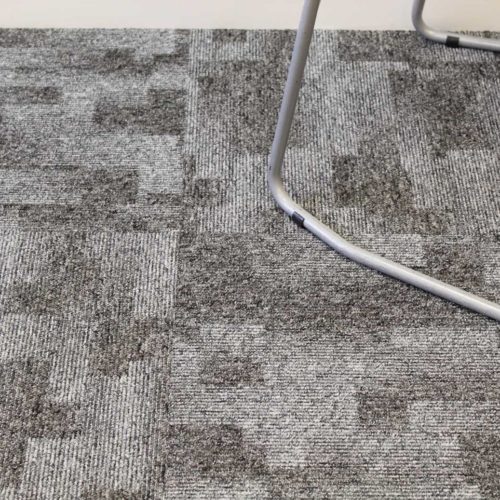

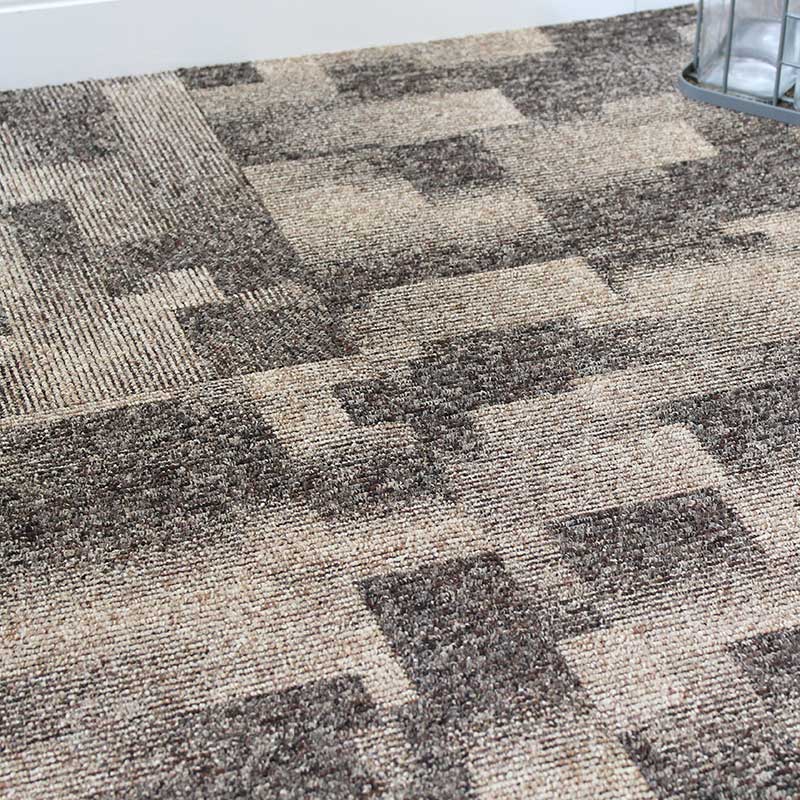

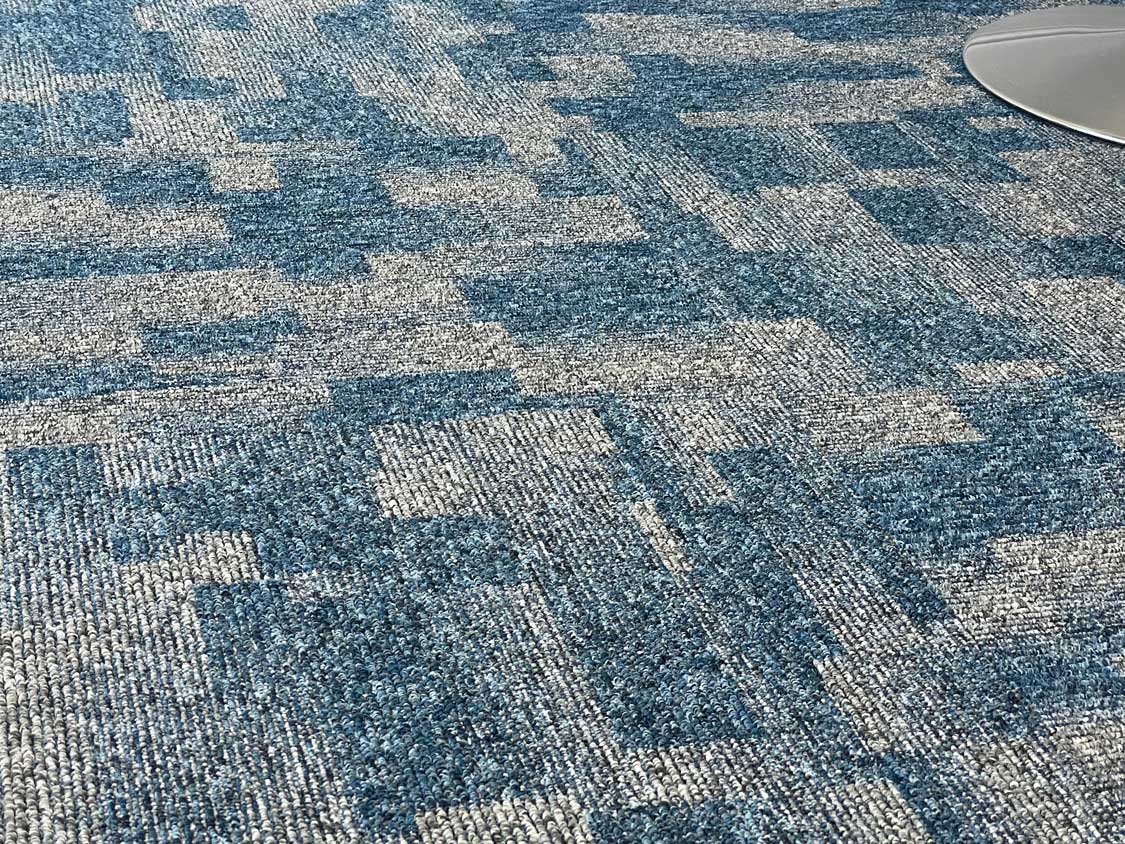

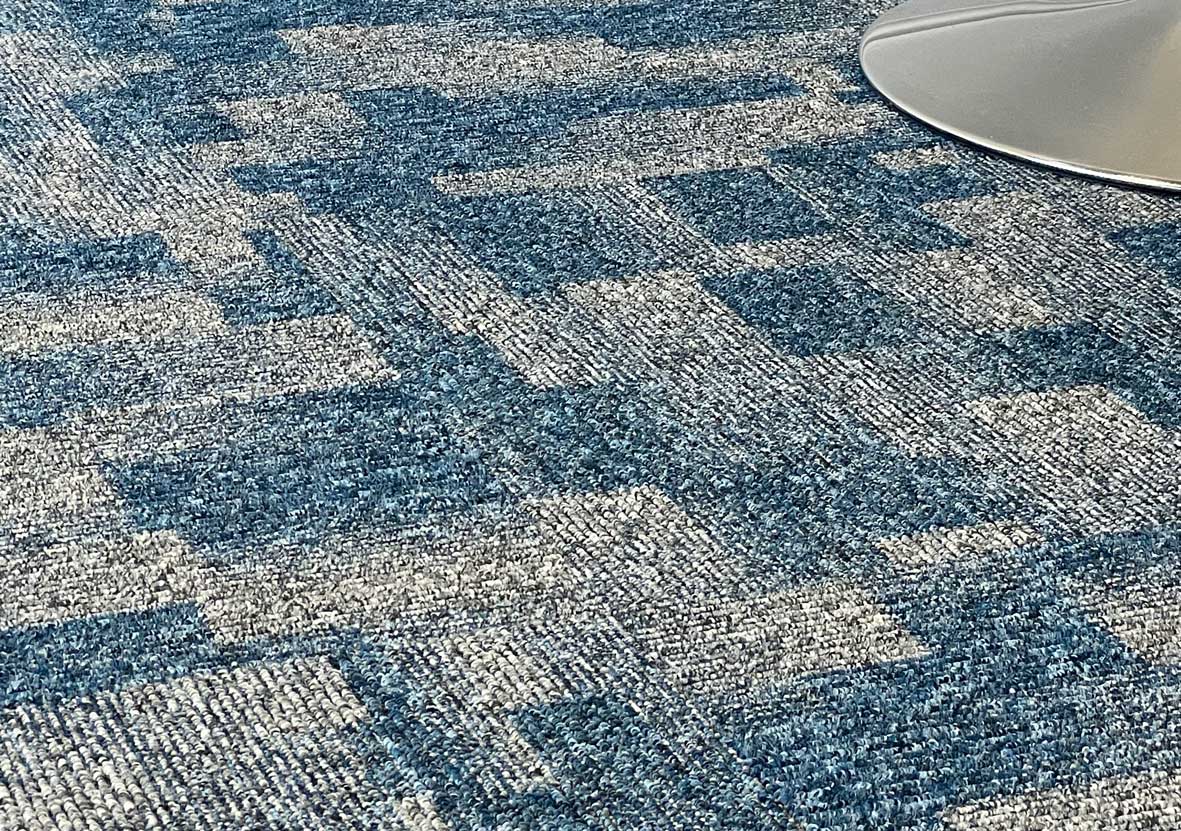

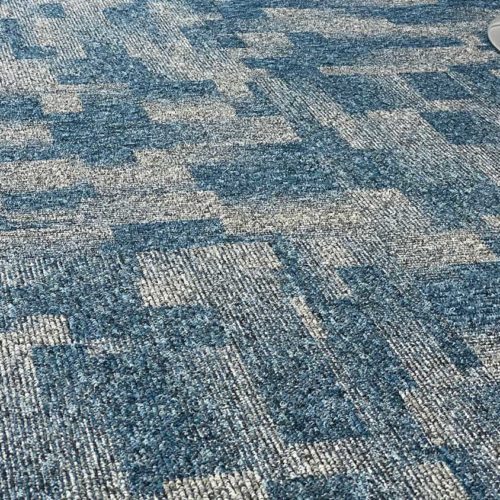

Urban Structure is a richly structured carpet tile, the natural irregularities in the designs give the impression of a hand-woven textile, which provides a sense of serenity and calm. Available in a selection of 6 earthy and vibrant tones, Urban Structure provides a perfect backdrop for any commercial interior.
Recommended for heavy traffic areas since its technical features ensure its extreme durability.
Based on all its credentials, being a 600gsm, class 32 general contract use tile, and castor test suitability, along with an impressive Clf-s1 fire rating.
The Urban Structure collection is a perfect fit for any commercial environment, whether it’s a school reception, university, commercial location, or a general office space that demands a unique identity.
The acoustics on the Standard bitumen backing is much greater than the industry requirement being 24dB for additional acoustics the acoustic backing increases this to an impressive 30dB.
Bitumen backing is Available as Standard in 50cm x 50cm carpet tiles, (acoustic backing as a special order).
We can also offer a special tile size of 25cm x 100cm, also available in either a bitumen or acoustic backing (subject to minimum order quantities).
| Product definition | Tufted multi-loop pile |
| Gauge | 1/10″ Myriad |
| Pile fibre | 100% Solution dyed polypropylene |
| Pile weight ISO 8543 | 600 gr/m2 ± 5% |
| Pile height ISO 1766 | 3.2 mm ± 5% |
| Tile backing | Bitumen with fibreglass interlay |
| Total thickness ISO 1765 | 5.6 mm ± 5% |
| Total weight ISO 8543 | 3125 gr/m2 ± 5% |
| Tile size | 50 x 50 cm |
| Use classification | 32 general contract |
| Castor chair test | B, occasional use |
| Static loading | Anti static |
| Abrasion | Pass |
| Sound absorption ISO 140-8 | 24dB |
| Reaction to fire | Cfl-s1 |
| Dimensional stability | Pass |
| Tiles per box | 20 (5m2) |
| Wear warranty | 5 years general contract |
For the majority of projects, carpet tiles are a superior choice both practically and in terms of design.
One of the main reasons architects and designers, not to mention floor fitters , choose to work with carpet tiles is the ease with which they can be installed.
We are confident you will find Urban Structure equally compatible to many of our competitors in today’s market place.
Urban Structure carpet tiles are:
Urban Structure’s design palette is comparable to:
